Kubernetes（k8s）v1.32.5高可用集群部署（三）容器与集群初始化

admin
admin
2025-06-30 / 0 评论 / 19 阅读 / 正在检测是否收录...


kubernetes部署是一个繁琐的过程，当然也可以使用第三方安装工具一键安装，但这不利于部署过程学习和自定义性，并且第三方工具或多或少都会有入侵性



容器运行时选择

选择一：Containerd k8s1.24后默认支持的容器运行时

选择二：dockerd 通用容器引擎


选择部署dockerd

dnf config-manager --add-repo https://download.docker.com/linux/rhel/docker-ce.repo
dnf install docker-ce docker-ce-cli containerd.io -y


配置docker与加速器

cat >/etc/docker/daemon.json <<EOF
{
  "registry-mirrors": ["http://docker.m.daocloud.io","https://docker.1ms.run"],
  "exec-opts":["native.cgroupdriver=systemd"],
  "log-driver": "json-file",
  "log-opts": {
    "max-size": "100m"
  },
  "storage-driver": "overlay2"
}
EOF


启动docker

systemctl enable --now docker && systemctl status docker


cri-docker的安装部署

从1.24版本开始后弃用了docker-shim所以默认不再支持docker引擎，需要cri-dockerd适配器将Docker Engine与Kubernetes集成


wget https://github.com/Mirantis/cri-dockerd/releases/download/v0.3.17/cri-dockerd-0.3.17.amd64.tgz
tar zxvf cri-dockerd-0.3.17.amd64.tgz
mv cri-dockerd/cri-dockerd /usr/local/bin/


写入启动cri-docker配置文件

cat >  /usr/lib/systemd/system/cri-docker.service <<EOF
[Unit]
Description=CRI Interface for Docker Application Container Engine
Documentation=https://docs.mirantis.com
After=network-online.target firewalld.service docker.service
Wants=network-online.target
Requires=docker.service

[Service]
Type=notify
ExecStart=/usr/local/bin/cri-dockerd --network-plugin=cni --pod-infra-container-image=registry.aliyuncs.com/google_containers/pause:3.7
ExecReload=/bin/kill -s HUP $MAINPID
TimeoutSec=0
RestartSec=2
Restart=always
StartLimitBurst=3
StartLimitInterval=60s
LimitNOFILE=infinity
LimitNPROC=infinity
LimitCORE=infinity
TasksMax=infinity
Delegate=yes
KillMode=process

[Install]
WantedBy=multi-user.target
EOF


写入cri-docker的socket配置文件

cat > /usr/lib/systemd/system/cri-docker.socket <<EOF
[Unit]
Description=CRI Docker Socket for the API
PartOf=cri-docker.service

[Socket]
ListenStream=%t/cri-dockerd.sock
SocketMode=0660
SocketUser=root
SocketGroup=docker

[Install]
WantedBy=sockets.target
EOF


启动cri-docker

systemctl daemon-reload
systemctl enable --now cri-docker.service
systemctl status cri-docker.service

检查：

ps -ef | grep cri-docker
ls -al /var/run/cri-dockerd.sock
unix:///var/run/cri-dockerd.sock 默认CRI 套接字路径




kubectl、kubeadm、kubelet部署


查询可安装版本

yum list kubeadm --showduplicates --disableexcludes=kubernetes | sort -r

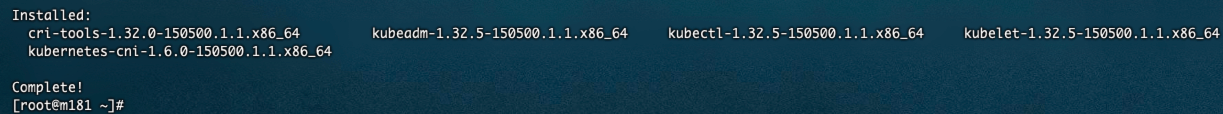

安装kubectl、kubeadm、kubelet

yum install -y kubelet kubeadm kubectl --disableexcludes=kubernetes

或指定版本安装：yum install kubeadm-1.32.5-0 kubelet-1.32.5-0 kubectl-1.32.5-0 -y

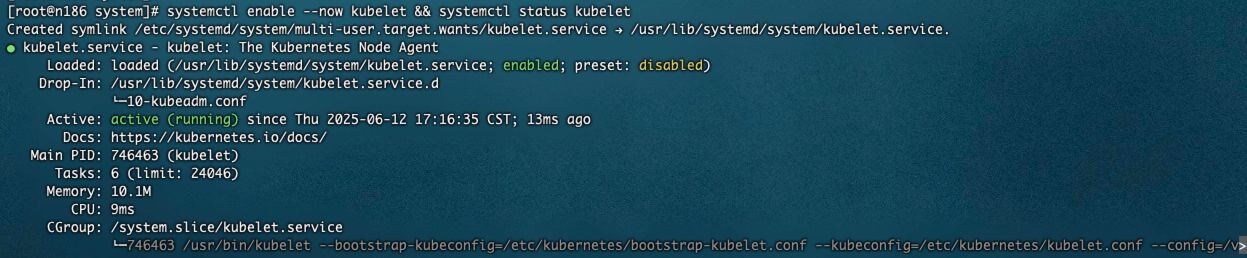

kubelet启动并设置开机自启

systemctl enable --now kubelet && systemctl status kubelet



强配置kubelet使用的cgroup与docker一致（可选）

vim /etc/sysconfig/kubelet
KUBELET_EXTRA_ARGS="--cgroup-driver=systemd"



k8s集群初始化配置（主master节点m181执行）


生成配置kubeadm-init文件（主要做参考）
kubeadm config print init-defaults > kubeadm-init.yaml

或者：
kubeadm config print init-defaults --component-configs KubeletConfiguration > kubeadm-init.yaml 带kubelet配置（可选）


配置kubeadm-init文件

cat > kubeadm-init.yaml << EOF
apiVersion: kubeadm.k8s.io/v1beta4
bootstrapTokens:
- groups:
  - system:bootstrappers:kubeadm:default-node-token
  token: abcdef.0123456789abcdef
  ttl: 24h0m0s
  usages:
  - signing
  - authentication
kind: InitConfiguration
localAPIEndpoint:
  advertiseAddress: 10.2.16.181
  bindPort: 6443
nodeRegistration:
  criSocket: unix:///var/run/cri-dockerd.sock
  imagePullPolicy: IfNotPresent
  imagePullSerial: true
  name: m181
  taints: null
timeouts:
  controlPlaneComponentHealthCheck: 4m0s
  discovery: 5m0s
  etcdAPICall: 2m0s
  kubeletHealthCheck: 4m0s
  kubernetesAPICall: 1m0s
  tlsBootstrap: 5m0s
  upgradeManifests: 5m0s
---
apiServer:
certSANs:
  certSANs:
  - "127.0.0.1"
  - "10.2.16.181"
  - "10.2.16.182"
  - "10.2.16.183"
  - "10.2.16.180"
  - "mvip"
  - "m180"
  - "m181"
  - "m182"
  - "m183"
  timeoutForControlPlane: 4m0s
apiVersion: kubeadm.k8s.io/v1beta4
caCertificateValidityPeriod: 87600h0m0s
certificateValidityPeriod: 8760h0m0s
certificatesDir: /etc/kubernetes/pki
clusterName: kubernetes
controllerManager: {}
dns: {}
encryptionAlgorithm: RSA-2048
etcd:
  local:
    dataDir: /var/lib/etcd
imageRepository: registry.aliyuncs.com/google_containers
kind: ClusterConfiguration
kubernetesVersion: 1.32.5
networking:
  dnsDomain: cluster.local
  serviceSubnet: 10.2.26.0/24
  podSubnet: 10.244.0.0/16
proxy: {}
scheduler: {}
controlPlaneEndpoint: "10.2.16.180:16443"
---
apiVersion: kubeproxy.config.k8s.io/v1alpha1
kind: KubeProxyConfiguration
mode: ipvs
---
apiVersion: kubelet.config.k8s.io/v1beta1
kind: KubeletConfiguration
cgroupDriver: systemd
EOF


预初始化init

预初始化有利于检查配置文件是否有错误及拉取代码是否正常

kubeadm init --config kubeadm-init.yaml --dry-run

参考链接: https://kubernetes.io/docs/reference/config-api/kubeadm-config.v1beta4/

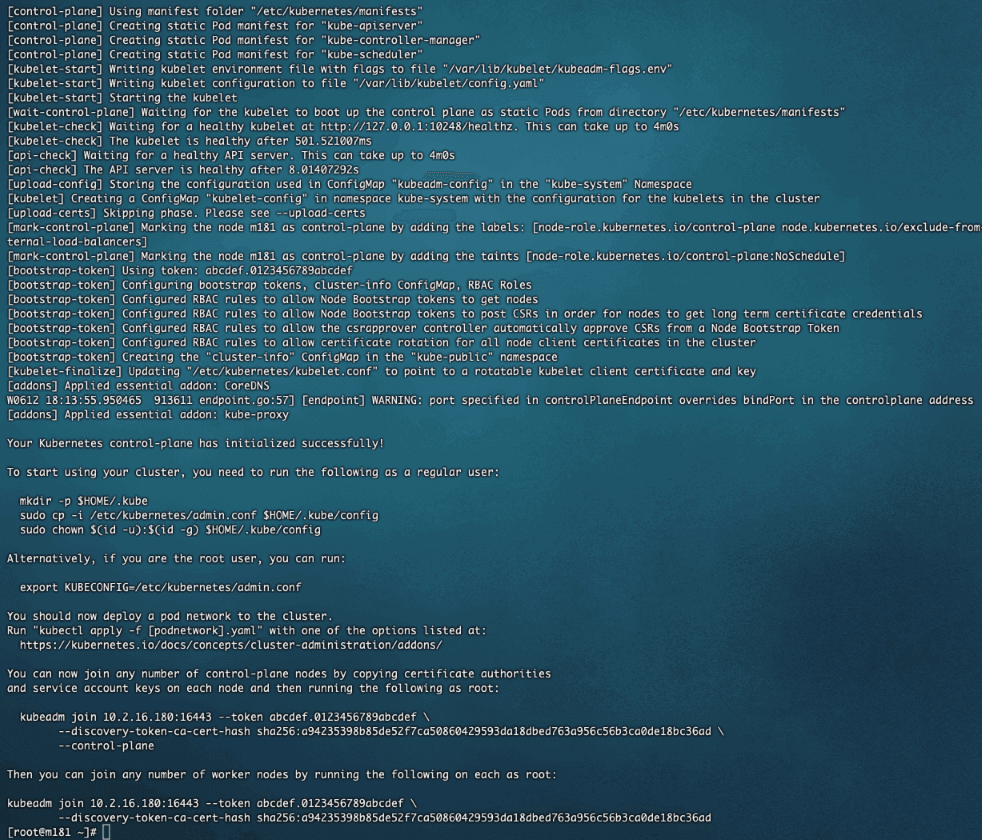

初始化k8s集群环境

kubeadm init --config kubeadm-init.yaml
或者 kubeadm init --upload-certs --config kubeadm-init.yaml --v=5 完整命令带详情



配置kubectl的kubeconfig


mkdir -p $HOME/.kube
sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
sudo chown $(id -u):$(id -g) $HOME/.kube/config

或者，如果您是root用户，您可以运行：
export KUBECONFIG=/etc/kubernetes/admin.conf


查询相关信息 （可选）
kubectl get nodes -o wide


另外两个master加入集群


从m181复制密钥及相关文件到m182、m183

ssh root@m182 mkdir -p /etc/kubernetes/pki/etcd
scp /etc/kubernetes/admin.conf root@m182:/etc/kubernetes
scp /etc/kubernetes/pki/{ca.*,sa.*,front-proxy-ca.*} root@m182:/etc/kubernetes/pki
scp /etc/kubernetes/pki/etcd/ca.* root@m182:/etc/kubernetes/pki/etcd

ssh root@m183 mkdir -p /etc/kubernetes/pki/etcd
scp /etc/kubernetes/admin.conf root@m183:/etc/kubernetes
scp /etc/kubernetes/pki/{ca.*,sa.*,front-proxy-ca.*} root@m183:/etc/kubernetes/pki
scp /etc/kubernetes/pki/etcd/ca.* root@m183:/etc/kubernetes/pki/etcd

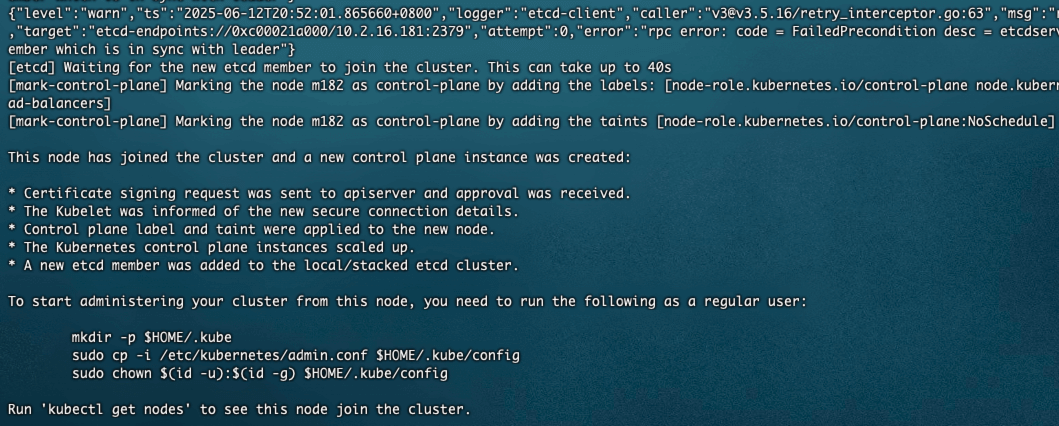

m182加入集群（m182上操作）

kubeadm join 10.2.16.180:16443 --cri-socket=unix:///var/run/cri-dockerd.sock --token 5yyioh.42cwfm41m9yprvd7 \
--discovery-token-ca-cert-hash sha256:a94235398b85de52f7ca50860429593da18dbed763a956c56b3ca0de18bc36ad --control-plane


使用dockerd容器运行时，注意必须加上：--cri-socket参数来指定容器运行时，否则报错，master节点与work节点都要加

因为不填写默认是containerd.sock，这里指定用cri-dockerd.sock


配置m182节点kubectl的kubeconfig

mkdir -p $HOME/.kube
sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
sudo chown $(id -u):$(id -g) $HOME/.kube/config


m183加入集群（m183上操作）

kubeadm join 10.2.16.180:16443 --cri-socket=unix:///var/run/cri-dockerd.sock --token 5yyioh.42cwfm41m9yprvd7 \
--discovery-token-ca-cert-hash sha256:a94235398b85de52f7ca50860429593da18dbed763a956c56b3ca0de18bc36ad --control-plane


配置m183节点kubectl的kubeconfig

mkdir -p $HOME/.kube
sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
sudo chown $(id -u):$(id -g) $HOME/.kube/config

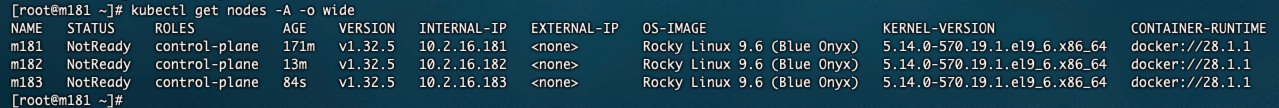

查看集群中的master节点

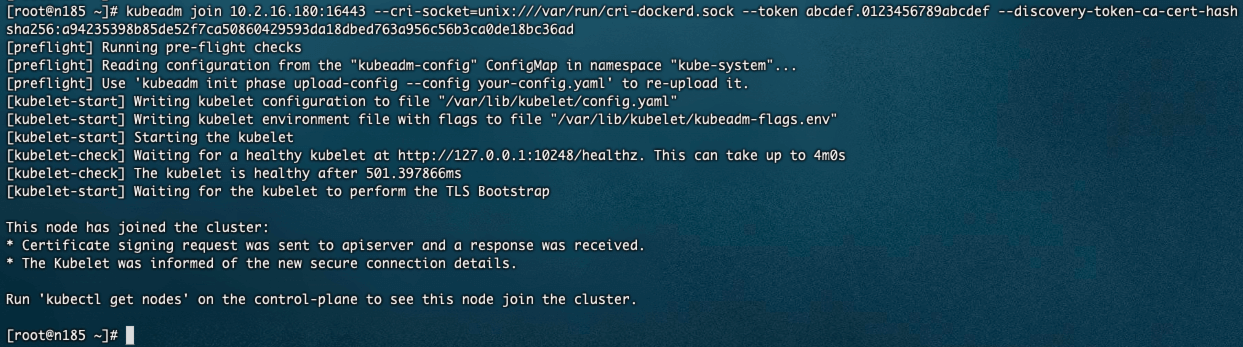

work各节点加入集群（所有工作节点操作）

kubeadm join 10.2.16.180:16443 --cri-socket=unix:///var/run/cri-dockerd.sock --token abcdef.0123456789abcdef \
--discovery-token-ca-cert-hash sha256:a94235398b85de52f7ca50860429593da18dbed763a956c56b3ca0de18bc36ad

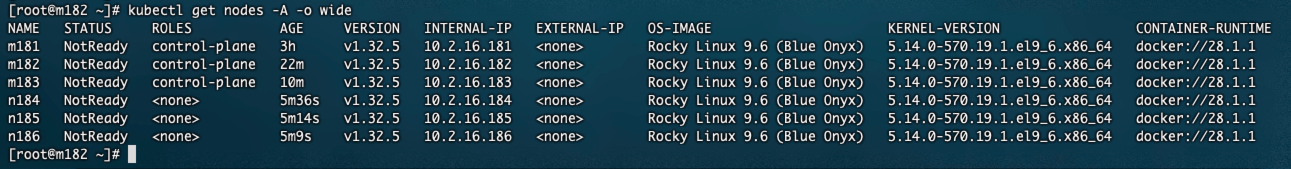

查看集群状态


NotReady是因为没有配置网络插件，影响的还有DNS Pod等
